Managed 8*1000Base T(X) +2*1000Base SFP FX Industrial Ethernet Switch
Basic Info
| Model NO. | MIB12G-8EG-2G-MIB |
| Transport Package | Carton |
| Origin | Jiangsu,China |
Product Description
HENGSION Managed MIB12G-8EG-4G-MIB provides 2*1000Base SFP FX fiber optic ports and 8*1000BaseT(X) fast Ethernet ports. No fan, low power consumption design; Support redundant Ring protocol( recovery time＜20ms), with complete security and QoS policies; Support VLAN division, port mirroring, and port rate limiting; Support broadcast storm suppression, flow control, and centralized management and configuration by WEB,CLI,SNMP; Din rail corrugated metal casing, meet IP40 protection grade; Dual redundant power input; Comply with CE, FCC and ROHS standards.

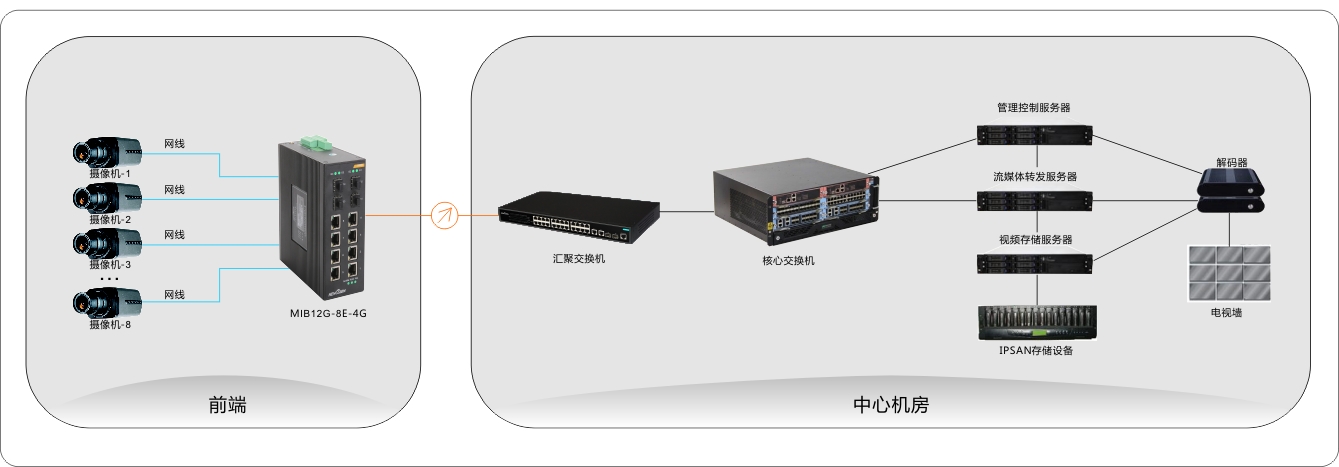

Its wide operating temperature range and port surge protection design are ideal for application in large flow real-time outdoor environment, and are widely used in industrial automation control and surveillance occasions like campus, community, rail traffic, electric power control and so on.
| Technology | |
| Standards | IEEE 802.3,802.3u,802.3x, 802.3ab, 802.3z; IEEE802.1Q,802.1p,802.1D,802.1w,802.1s,802.1X,802.1ab |
| Protocols | Ring, MSTP, IGMP Snooping, GMRP,VLAN,PVLAN, Telnet, HTTP, HTTPS, RMON,SNMPv1/v2/v3,LLDP,SNTP,DHCP server,SSH,SSL,ACL,FTP,ARP,QoS |
| Interface | |
| Gigabit Ethernet port | 10/100/1000 Base-T(X) auto-adaptive RJ45 |
| Gigabit Fiber port | 1000Base-SFP FX port (LC) |
| Console port | 3.81mm industrial terminal |
| Power port | 5.08mm industrial terminal |
| Switching Features | |
| Processing Type | Store & forward, wire speed switching |
| Switching bandwidth | 50Gbps |
| Packet forwarding speed | 37.2Mpps |
| MAC Address | 8K |
| Buffer Memory | 512KB |
| Priority Queue | 4 |
| VLAN number | 4K |
| VLAN ID | 1-4096 |
| Multicast groups | 256 |
| Software Features | |
| VLAN | 802.1Q,Vlan(4K), Port-based VLAN, Q-in-Q |
| Storm Suppression | Broadcast, multicast, and unknown unicast storm suppression |
| Flow control | IEEE802.3X negotiation, CAR function, rate limiting step 64K |
| Multicast protocol | IGMPv1/2/3 Snooping |
| Port Management | Support port mirroring, port isolation, port trunking |
| DHCP Management | Support DHCP Snooping, option 82 |
| QoS (Quality of Service) | 802.1p; Support port default priority tags, at least 4 different priority queues per port |
| Security features | MAC address filtering, dynamic or static MAC address learning, Loop detection and Port+ IP+MAC binding |
| Traffic Management | Port traffic monitoring and fault event alarming |
| Management | SNMP v1/v2/v3, CLI,WEB |
| Management Access | Support Console, Telnet |
| System Maintenance | RMON,PDP Discovery Protocol(CDP compliant),AST |
| File transfer | Support Log output, configuration file backup and input |
| LED Indicator for | |
| Power, Device running status, Ethernet port connection & running status | |
| Power | |
| Input Voltage Range | 10-75VDC/10-75VAC redundant input |
| Idle Consumption | 0.33A@12VDC(Max) |
| Full -load Consumption | 0.57A@12VDC(Max) |
| Connection | 5.08mm industrial terminal |
| Protection | Overload Current Protection; Redundancy protection |
| Mechanical | |
| Casing | Strengthened corrugated metal casing |
| Protection grade | IP40 |
| Dimension(L*W*H) | 129*100*77mm |
| Installation | Din Rail |
| Weight | 1 Kg |
| Environmental | |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -45℃～+85℃ |
| Relative Humidity | 5～95%,non-condesing |
| Industry Approvals | |
| EMI | FCC Part 15,CISPR(EN55022) class A |
| EMS | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS),Level 3 | |
| EN61000-4-4(EFT),Level 4 | |
| EN61000-4-5(Surge),Level 4 | |
| EN61000-4-6(CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Warranty | |
| Warranty Period | 5 years |
