Short Description:

Material: Stainless Steel Wire
Application: Construction Wire Mesh, Protecting Mesh, Screen, Filter, Barbecue Wire Mesh, Fence Mesh, Decorative Mesh, Window Curtain, Cages
Hole Shape: Square
Weave Technique: Plain Weave
Weave Method: Flat-Topped Curved
Feature: Easily Assembled

Product Detail

Product Tags

Basic Info

Model NO. SS-002
Wire Diameter 14.0mm
Color Primary Colors
Packaging Roll
Wire Grade 302 304 304L 316 316L etc
Wire Mesh Width 0.5m,1m, 1.2m, 1.5m Ect
Nickels 0%~10%
Diameter 0.02-2.0mm
Mesh 1-200
Transport Package Carton or Wooden Box
Origin Hebei, China
HS Code 3925300000
Production Capacity 1000 Sqm/Day

Product Description

Because of the special properties of stainless steel material, stainless steel mesh is often used in the industries which strictly request for product stability, Stainless Steel Mesh has been widely used in mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, crafts and other industries.

Material: high quality SUS302, 304, 316, 321, 310 stainless steel hard bright silk

Weaving and characteristics: pre-bending(TIE)after weaving, form of vibration wave, are flat bending, locked bending. Products with acid and alkali resistance, high temperature resistance and appearance characteristics

Application: used in acid, alkaline environment of the oil, chemical, marine industries filtration screening and protection. Also used in the production of continuous glass reinforced, various kinds of life and industrial frame storage basket blue, crafts, kitchen, the refrigerator.

Stainless steel woven wire mesh detail:
Material: SUS304, SUS316L,SUS316L, SUS310
Hole size: 3mesh to 500mesh
Wire diameter: from 0.03mm to 2.0mm
Mesh edge: in open edges, in locked edges
Packing: in roll, in sheet, in disc.
Used: for making wire mesh basket, for filtering, for decorative wire mesh and so on

LARGE STOCK QUANTITY ARE AVAILABLE CAN BE SEND OUT IMMEDIATELY

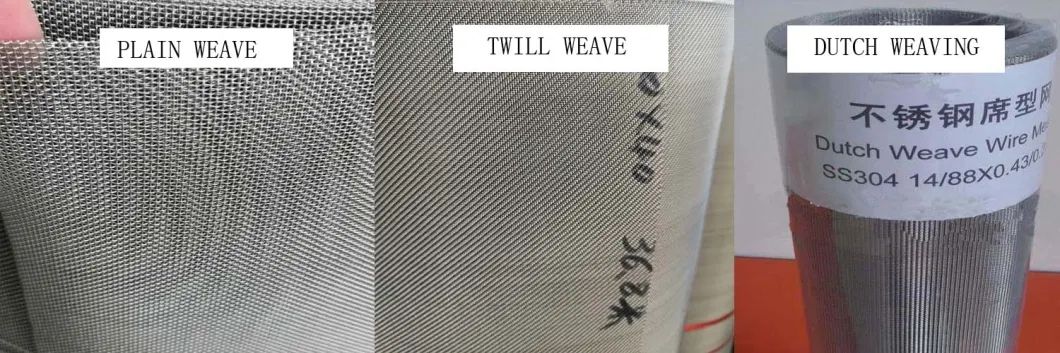

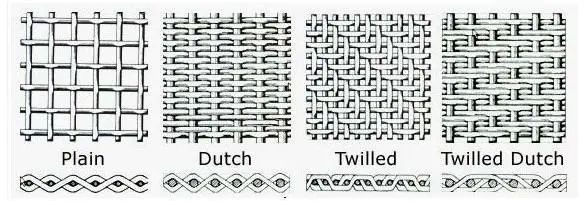

1. According to the different weaving type, the stainless steel wire mesh are divided into plain weave, twill weave , Dutch weaving, the picture as below show:

2. Acording to the edges weave, usually in big hole stainless steel woven mesh, are divided into locked closed edges and open bur edges locked closed edges stainless steel woven mesh open edges stainless steel woven wire mesh

Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (4)
Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (3)

3. According to the hole size, divided into fine mesh and coarse mesh fine woven stainless steel wire mesh coarse woven stainless steel wire mesh

Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (5)
Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (6)

4. The Woven Wire Mesh Production Processing Are As Follows:

Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (7)

5. Plain weave and twill weave and dutch weaving  stainless steel wire mesh reference specification:
plain weave and twill weave size:

Specification list of  Woven Wire Cloth
Meshes Per Linear Inch Diameter of Wire Width of Opening Open
Area, %
Inches mm Inches mm
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.023 0.58 0.048 1.22 45.2
14 x 14 0.020 0.5 0.051 1.30 51.0
16 x 16 0.028 0.7 0.035 0.89 30.5
16 x 16 0.023 0.58 0.040 1.01 39.9
16 x 16 0.018 0.45 0.045 1.14 50.7
18 x 18 0.020 0.5 0.036 0.91 41.1
18 x 18 0.018 0.45 0.038 0.96 48.3
20 x 20 0.023 0.58 0.027 0.68 29.2
20 x 20 0.020 0.5 0.030 0.76 36.0
20 x 20 0.018 0.45 0.032 0.81 41.0
20 x 20 0.016 0.40 0.034 0.86 46.2
24 x 24 0.014 0.35 0.028 0.71 44.2
28 x 28 0.010 0.25 0.026 0.66 51.8
30 x 30 0.013 0.33 0.020 0.50 37.1
30 x 30 0.012 0.30 0.021 0.53 40.8
35 x 35 0.012 0.30 0.017' 0.43 33.8
35 x 35 0.010 0.25 0.019 0.48 42.4
40 x 40 0.014 0.35 0.011 0.28 19.3
40 x 40 0.012 0.30 0.013 0.33 27.4
40 x 40 0.010 0.25 0.015 0.38 36.0
40 x 40 0.0095 0.24 0.016 0.40 38.4
50 x 50 0.009 0.23 0.011 0.28 30.3
60 x 60 0.0075 0.19 0.009 0.22 30.5
70 x 70 0.0065 0.17 0.008 0.20 29.8
80 x 80 0.0070 0.18 0.006 0.15 19.4
80 x 80 0.0055 0.14 0.007 0.17 31.4
90 x 90 0.0055 0.14 0.006 0.15 25.4
100 x 100 0.0045 0.11 0.006 0.15 30.3
120 x 120 0.0040 0.10 0.0043 0.11 26.6
120 x 120 0.0037 0.09 0.005 0.12 30.7
150 x 150 0.0026 0.066 0.0041 0.10 37.4
165 x 165 0.0019 0.048 0.0041 0.10 44.0
180 x 180 0.0023 0.058 0.0032 0.08 33.5
180 x 180 0.0020 0.050 0.0035 0.09 41.1
200 x 200 0.0020 0.050 0.003 0.076 36.0
200 x 200 0.0016 0.040 0.0035 0.089 46.0
220 x 220 0.0019 0.048 0.0026 0.066 33.0
230 x 230 0.0014 0.035 0.0028 0.071 46.0
250 x 250 0.0016 0.040 0.0024 0.061 36.0
270 x 270 0.0014 0.040 0.0022 0.055 38.0
300 x 300 0.0012 0.030 0.0021 0.053 40.1
325 x 325 0.0014 0.040 0.0017 0.043 30.0
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5

Duth weaving stainless steel wire mesh reference specification:

mesh wire dia (MM) Material (AISI)
12 X 64 0.58/0.40 304  316
24 X 110 0.36/0.25 304  316
14  X88 0.50/0.33 304  316
30 X150 0.18/0.14 304  316
40 X200 0.14/0.11 304  316
50 X250 0.10/0.071 304  316
80 X700 0.06/0.05 304  316
165 X800 0.071/0.040 304  316
165 X1400 0.05/0.032 304  316
200 X1800 0.05/0.03 316
325 X2300 0.030/0.025 316L
400 X2800 0.030/0.02 316L

6. STAINLESS STEEL WOVEN MESH PRODUCTS APPLICATION :
used for making wire mesh basket, filter disc, filter elements, filter sieving mesh and so on

Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (9)
Ss 304 Crimped Wire Mesh, Woven Stainless Steel Wire Mesh (8)
