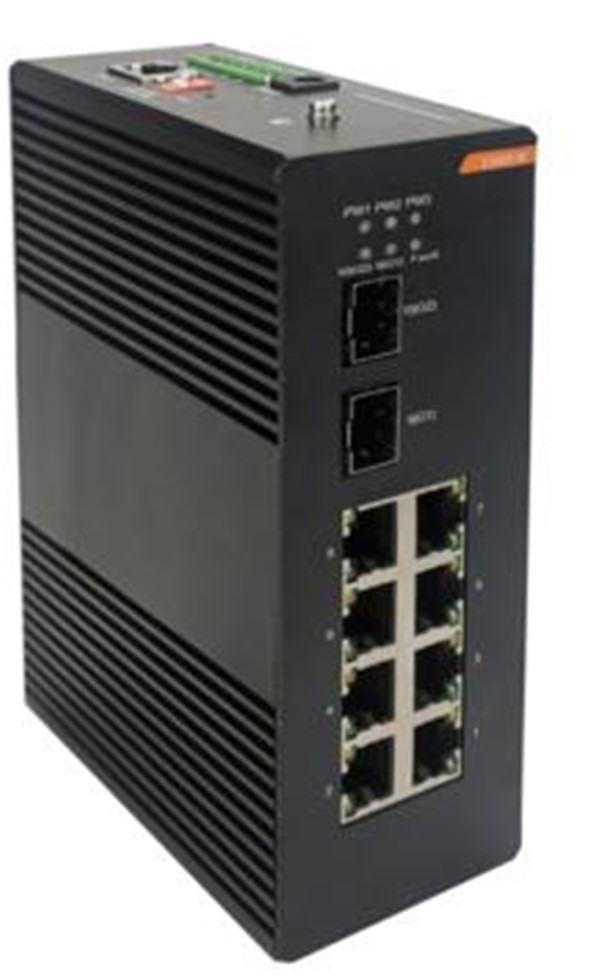

Unmanaged 8*1000Base T(X)+ 2*1000Base SFP FX Industrial Ethernet Switch
Basic Info
| Model NO. | MIB12G-8EG-2G-EIR |
| Transport Package | Carton |
| Origin | Jiangsu,China |
Product Description
HENGSION unmanaged MIB12G-8EG-2G-EIR provides 2*1000Base SFP TX/FX ports and 8*1000BaseT(X) Ethernet ports. No fan, low power consumption design; Din rail corrugated metal casing, meet IP30 protection grade; Dual redundant power input; Comply with CE, FCC and ROHS standards.

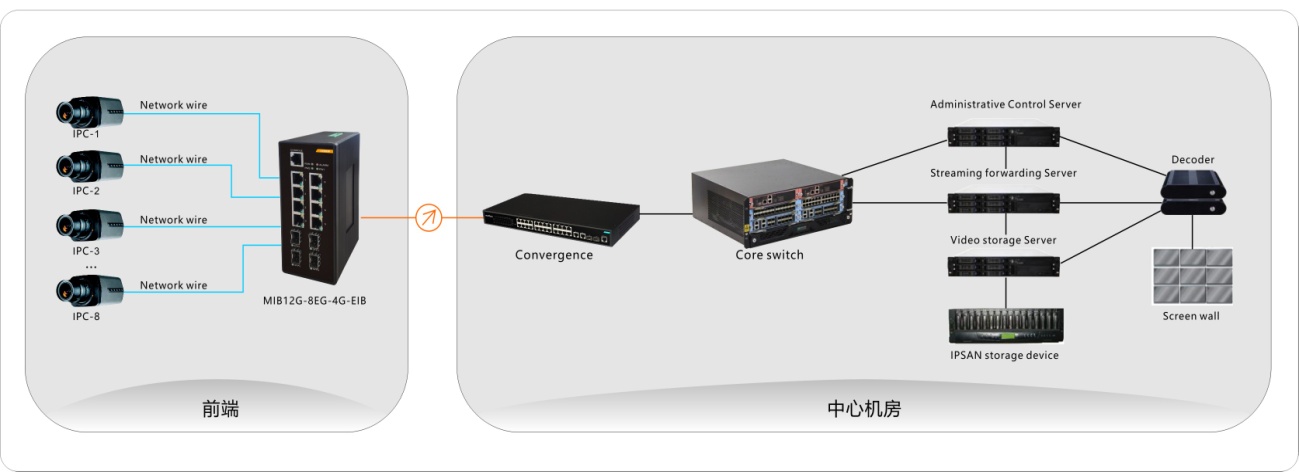

This series’ wide operating temperature range and port surge protection design are ideal for application in large flow real-time outdoor environment, and are widely used in industrial automation control and surveillance occasions like campus, community, rail traffic, electric power control and so on.
| Technology | |
| Standards | IEEE 802.3,802.3u,802.3x, 802.3ab, 802.3z |
| Interface | |
| Gigabit Ethernet port | 10/100/1000 Base-T(X) auto-adaptive RJ45 |
| Gigabit Fiber port | 1000Base-SFP FX port |
| Power port | 5.08mm industrial terminal |
| Switching Features | |
| Processing Type | Store & forward, wire speed switching |
| Switching bandwidth | 50Gbps |
| Packet forwarding speed | 15Mpps |
| MAC Address | 4K |
| Buffer Memory | 512KB |
| LED Indicator for | |
| Power, Ethernet port connection & running status | |
| Power | |
| Input Voltage Range | 12-57VDC redundant input |
| Connection | 5.08mm industrial terminal |
| Protection | Overload Current Protection; Redundancy protection |
| Mechanical | |
| Casing | Strengthened corrugated metal casing |
| Protection grade | IP40 |

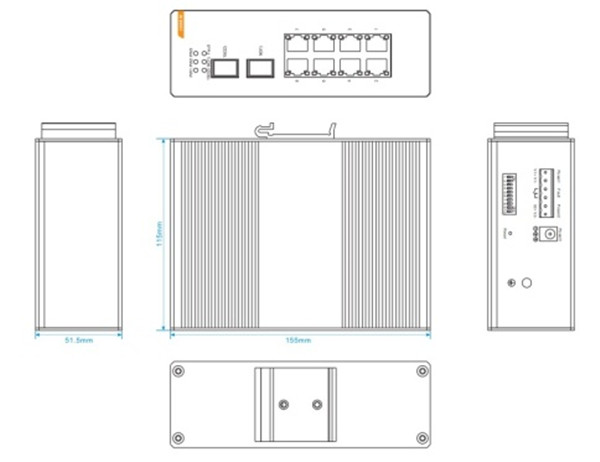

| Dimension(L*W*H) | 155*111*51mm |
| Installation | Din Rail |
| Weight | 1 Kg |
| Environmental | |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -45℃～+85℃ |
| Relative Humidity | 5～95%,non-condensing |
| Industry Approvals | |
| EMI | FCC Part 15,CISPR(EN55022) class A |
| EMS | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS),Level 3 | |
| EN61000-4-4(EFT),Level 4 | |
| EN61000-4-5(Surge),Level 4 | |
| EN61000-4-6(CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Warranty | |
| Warranty Period | 5 years |
